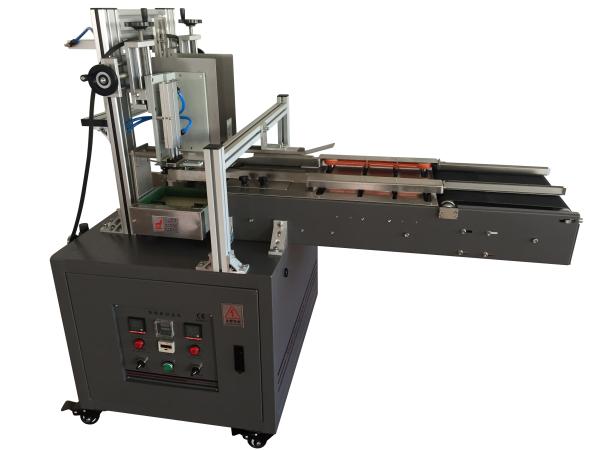

SB-01 Semi-Automatic Sticky Box Machine With Long Conveyor,
High-Speed Production Rate
Product Description:
The biggest advantage of this machine is its long conveyor, which
would help to improve the production rate. This product is suitable
for packaging industries such as food, medicine, paper towels,
toys, electronics, etc. It has environmental protection,
anti-counterfeiting and efficient advantage. Is the first choice in
the packaging industry today.
Product Features:
1. The material selection of the whole machine meets the
requirements of environmental protection.
2. Simple operation and lasting use.
3. Fully enclosed structure, simple and stylish appearance.
4. All key components will be imported components.
5. Optimize power consumption, in line with the new concept of
energy saving.
Main Technical Parameters:
| Specifications | 2000mm (L) × 1000mm (W) × 1500mm (H) |
| Power consumption | AC220V, 3.2KW |
| Limit temperature rise | No more than 230℃ |
| Provide gas source | 0.6Mpa to 0.4Mpa is appropriate |
| Air source consumption | About 400L/h (normal operation) |
| Processing capacity | 36-40 pieces/min (depending on the proficiency of the operator) |
| Adapt to the minimum range of carton processing | 80mm (L) × 40mm (W) × 15mm (H), adapt to the maximum range of carton processing: 300mm L) × 200mm (W) × 120mm (H) |
Machine Advantages:
1. Simple structure, easy in installation and maintaining.
2. Running in a high automation and intelligent, no pollution.
3. High Temperature working for the Max. Glue is 230℃.
Hot Melt Glue Sealing Machine Working Process:
Manual open carton → put carton on production line→ Manually bend
the carton edge → put on machine guiding track→push the carton to
gluing position→ automatic gluing → Cylinder lift up automatically
→ Package Sealing Finished →Final Products Checking
Packing and Shipping:
| Packing | Wooden pallet according to specific size of each equipment, we
twine thick plastic wrapping film for each machine. |
| Packing Details | Wrapped in wrapping film and wooden boxes to ensure no rubbing during the transportation. |
| Shipping | Sea transportation or train. |
All the machines of our company are wrapped in wrapping film and
wooden boxes before shipment. They are shipped as standard (except
for local company procurement) to check whether the packaging is
intact before the customer receives the goods. If there is any
damage, please contact our company in time. If it is intact, the
customer can safely sign for it. After signing, the wooden box and
packaging can be removed by themselves. After the removal, the
machine can enter the installation stage.
Our Service:
Quanzhou Kerui mechanical equipment Co., Ltd has more than 8 years
of experience of box sealing machine, relevant equipment and
accessories for glue sealing machine.
Products range:
1. Stainless Steel High-speed Sticky Box Machine, Sticky Can
Machine, Sticky Box Machine, Sticky Case Machine.
2. High-speed Sticky Box Machine, Hand Push Sticky Box Machine,
Conveyor Sticky Box Machine.
3. Hot Melt Glue Machine, Electric Trolley.
4. Bearing Accessories, Aluminum Synchronous Wheel, Nylon
Synchronous Wheel.
5. Timing Belt, Right Angle Seat, Motor Base, and other
Accessories.
FAQ:
1. Are you a manufacturer or trading company?
We are a manufacturer with our own factory.
2. Where is your factory?
Our factory locates in No.4 Yuanfu North Road, Jiangnan High-tech
Park, Licheng District, Quanzhou, Fujian, China.
3. How long is the turnaround time?
It takes about 3-10 working days to finish. And it depends on
different products and customized requirements.
4. How long is your delivery time?
3-15 days after order being confirmed. Detailed delivery date
should be decided according to production season and order
quantity.
5. Can your machine do customization for our products?
We could do some customization size to fit your products size
according to your requirement.
